NA2XS(F)2Y RM 12/20 kV - triplex
NA2XS(F)2Y RM 12/20 kV - triplex
power cable, XLPE-insulated with PE sheath, longitudinally watertight of metallic screen, in triplex formation
Read moreNA2XS(F)2Y 20 3X(1X150/25) C #D
Nexans ref. 13005883 - Country ref. 13005883
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
- Phase Conductor Cross Section: 150 mm²
- Screen section: 25 mm²
- Nominal outer diameter: 36.0 mm
- Outer Diameter: 80 mm
NA2XS(F)2Y 20 3X(1X300/25) C #D
Nexans ref. 13005572 - Country ref. 13005572
- Packaging: Cut to length (m)
- Conductor cross-section: 300 mm²
- Phase Conductor Cross Section: 300 mm²
- Screen section: 25 mm²
- Nominal outer diameter: 43.0 mm
- Outer Diameter: 93 mm
NA2XS(F)2Y 20 3X(1X400/35) C #D
Nexans ref. 13005976 - Country ref. 13005976
- Packaging: Cut to length (m)
- Conductor cross-section: 400 mm²
- Phase Conductor Cross Section: 400 mm²
- Screen section: 35 mm²
- Nominal outer diameter: 46.0 mm
- Outer Diameter: 99 mm
Description
Description
Standards
-
InternationalIEC 60502-2
-
NationalDIN VDE 0276 part 620
Construction

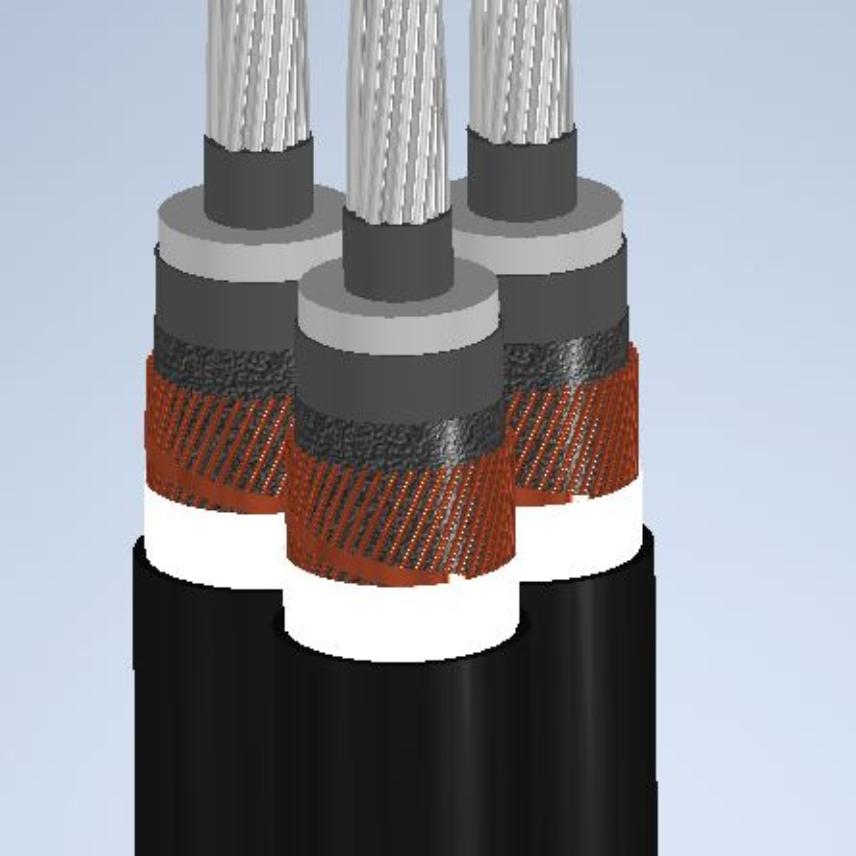

each single core cable is consisted of stranded aluminium conductor - conductor screen of semiconducting compound - insulation of cross-linked polyethylen (XLPE) - screen of semiconducting compound - semiconducting tape - screen of copper wires and copper tape - longitudinal water protection - separation tape - PE sheath. Three single core cables are laid-up together in triplex formation
Application
in ground, outdoors, in water, indoors and in cable ducts
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor shape
Circular
Lead free
Yes
Halogen free
Yes
Insulation
XLPE
Material of bedding
Semiconducting tapes
Screen
Copper wire + copper tape
Outer sheath
PE
Longitudinally watertight
Yes
Conductor flexibility
Class 2
Radial waterproof
Yes
Sheath colour
Black
Dimensional characteristics
Dimensional characteristics
Nominal outer sheath thickness
2.5 mm
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Bending factor when laying
15 (xD)
