NA2XS(F)2Y V RM 12/20 kV
NA2XS(F)2Y V RM 12/20 kV
Single-core XLPE-insulated cables with PE sheath, longitudinally watertight of metallic screen
Read moreNA2XS(F)2Y V 20 1x150RM/25 M3.0KW #D
Nexans ref. 13005692 - Country ref. 13005692
- Packaging: Cut to length (m)
- Conductor cross-section: 150 mm²
- Phase Conductor Cross Section: 150 mm²
- Nominal outer diameter: 38.0 mm
- Outer Diameter: 38 mm
NA2XS(F)2Y V 20 1x240RM/25 M3.0KW #D
Nexans ref. 13005926 - Country ref. 13005926
- Packaging: Cut to length (m)
- Conductor cross-section: 240 mm²
- Phase Conductor Cross Section: 240 mm²
- Nominal outer diameter: 43.0 mm
- Outer Diameter: 43 mm
NA2XS(F)2Y V 20 1x300RM/25 M3.0KW #D
Nexans ref. 13005963 - Country ref. 13005963
- Packaging: Cut to length (m)
- Conductor cross-section: 300 mm²
- Phase Conductor Cross Section: 300 mm²
- Nominal outer diameter: 45.0 mm
- Outer Diameter: 45 mm
Description
Description
Standards
-
ProductDIN VDE 0276 part 620; IEC 60502-2
Application
Single core MV cable suitable for outdoor and indoor installation, in air, in grounds, in cable ducts.
This product is also part of our Windlink® offer dedicated to wind turbines.
Construction

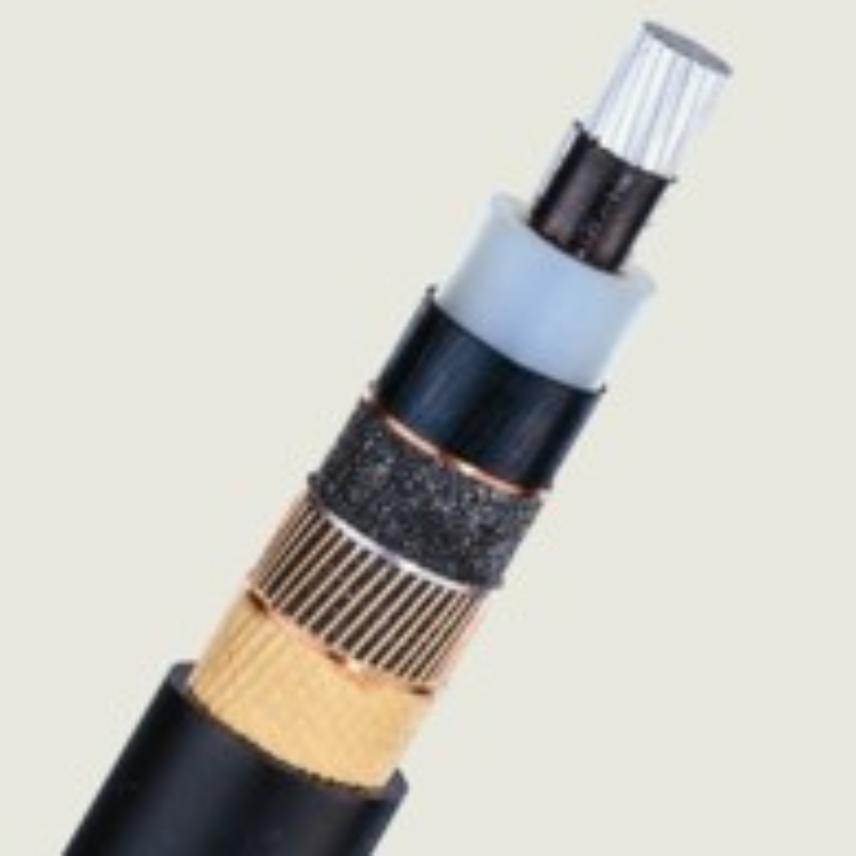

The single core MV cable is consisted of stranded aluminium conductor, conductor screen of semiconducting compound, insulation of cross-linked polyethylene (XLPE), screen of semiconducting compound, semiconducting tape, screen of copper wires and copper tape, longitudinal water protection, separation tape, PE sheath with increased thickness.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Aluminum
Conductor shape
Circular
Conductor flexibility
Class 2
Lead free
Yes
Halogen free
Yes
Material of the inner semi-conductor
Semi-conducting compound
Insulation
XLPE
Material of the external semi-conductor
Semi-conducting compound
Material of bedding
Semiconducting tapes
Screen
Copper wire + copper tape
Outer sheath
PE
Longitudinally watertight
Yes
Sheath colour
Black
Dimensional characteristics
Dimensional characteristics
Screen section
25 mm²
Usage characteristics
Usage characteristics
Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Bending factor when laying
15 (xD)
