CU/XLPE/AWS/PE 6.35/11KV - TRIPLEX - IEC
CU/XLPE/AWS/PE 6.35/11KV - TRIPLEX - IEC

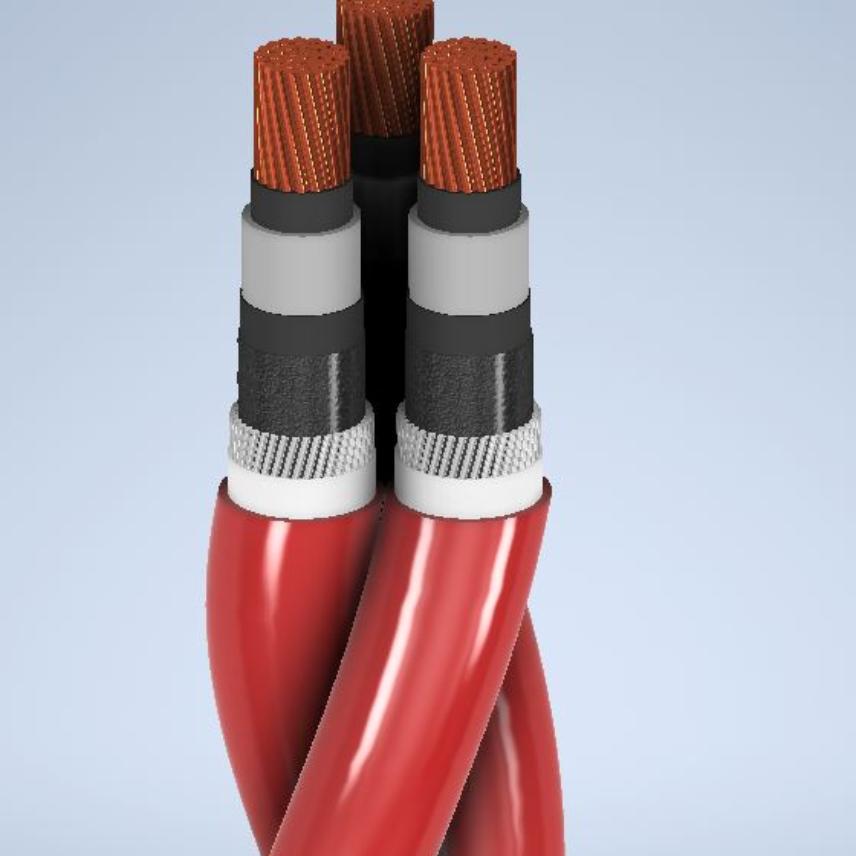

Triplex MV cable XLPE insulated and Aluminium wire screened. Rated voltage 6.35/11 KV (Um=12KV)
Read more,CU/XLP/PE 11 3X1X185/70C RD AWS #D #R #1
Nexans ref. 13005660 - Country ref. 13005660
- Packaging: Cut to length (m)
- Conductor cross-section: 185 mm²
- Phase Conductor Cross Section: 185 mm²
- Nominal outer sheath thickness: 1.9 mm
- Nominal outer diameter: 73.0 mm
CU/XLP/PE 11 3X1X300/70C RD AWS #D #R #1
Nexans ref. 13005661 - Country ref. 13005661
- Packaging: Cut to length (m)
- Conductor cross-section: 300 mm²
- Phase Conductor Cross Section: 300 mm²
- Nominal outer sheath thickness: 2.1 mm
- Nominal outer diameter: 84.0 mm
CU/XLP/PE 11 3X1X400/70C RD AWS #D #R
Nexans ref. 13005951 - Country ref. 13005951
- Packaging: Cut to length (m)
- Conductor cross-section: 400 mm²
- Phase Conductor Cross Section: 400 mm²
- Nominal outer sheath thickness: 2.2 mm
- Nominal outer diameter: 90.0 mm
Description
Description
Standards
-
InternationalIEC 60502-2
Electric cable with stranded (class 2) copper conductor, conductor screen of semiconducting compound, XLPE insulation, insulation screen of semiconducting compound, aluminium wires metallic screen with longitudinal water protection, PE outer sheath. Three single core cables are laid-up together in triplex formation. The cable is in general complied to BS 7870-4.10
Application
in grounds, outdoors, indoors and in cable ducts
The cable is suitable for rated voltage 6/10KV (Um=12KV) according to the IEC standards.
Note:
Other cross sections are available on request.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
